Broadband Stimulus

Tellabs 1000 MSAP, and the Tellabs FlexSym OLT-mini, can optimize your broadband stimulus projects by minimize cost of entry, by investing only when needed, and thus optimize project returns.

Satisfy more broadband initiative targets with less money, resources and time

Broadband Service Provider Solutions

Our nation continues to struggle to provide uniform access to high-speed broadband services across different regions and social economic classes. From the Connect America Fund (CAF) to the Rural Digital Opportunity Fund (RDOF), and now the Infrastructure Investment and Jobs Act (IIJA), plus Broadband Equity, Access and Deployment (BEAD) program, we continue to aspire to close the digital divide.

The Tellabs 1000 MSAP (aka T1000, DMAX, AFC, UMC) helps service providers tackle these more difficult serving areas with a strategy that uses your Tellabs 1000 MSAP embedded base. This can be done easily by upgrading and expanding the existing Tellabs broadband systems to provide 25M/3M, 50/5 and in some cases 100/20 service. We can do this at a lower cost, and faster time to market than a plan that does not include the Tellabs 1000 for broadband stimulus projects.

For build-outs that are targeting 100M/20M and 1G/500M high speed internet connectivity to residents, businesses and community anchors (e.g. libraries, hospitals, civic centers), a Passive Optical LAN design can be considered that uses the Tellabs FlexSym® Optical Line Terminal Mini (OLT-mini). The Tellabs FlexSym OLT-mini provides a small form-factor OLT supporting either GPON or symmetrical 10 gigabit XGS-PON. The Tellabs FlexSym OLT-mini weathertight case, passive cooling and extended operating temperature range means that it is ideal for both indoor and outdoor connectivity. All of these features optimize the OLT-mini for difficult connectivity challenges of sprawling distances, harsh environments and extended temperature ranges.

Quick Facts

  • Use Tellabs FlexSym OLT-mini for 100M/20M and 1G/500m targets
  • Use existing T1000 sites and/or extend and expand systems in targets
  • Satisfy underserved/unserved targets with less money, resources and time
  • Upgrade to 25M/3M or 50M/5M or 100M/20M with lowest costs
  • Win more competitive reverse auction bids by using T1000 embedded base
  • Sustain, expand and evolve the existing installed base

Featured Broadband Stimulus Content

Satisfy Outdoor, Long Reach and Small Projects with the Tellabs FlexSym OLT-mini and FlexSym OLT-mini PLUS
Satisfy Outdoor, Long Reach and Small Projects with the Tellabs FlexSym OLT-mini and FlexSym OLT-mini PLUS
Webinar: Rural Digital Opportunity Fund and Passive Optical Networks
Webinar: Rural Digital Opportunity Fund and Passive Optical Networks

Highlighted Products for Broadband Stimulus

FlexSym OLT-mini PLUS (Rack Mount)
FlexSym OLT-mini PLUS (Rack Mount)

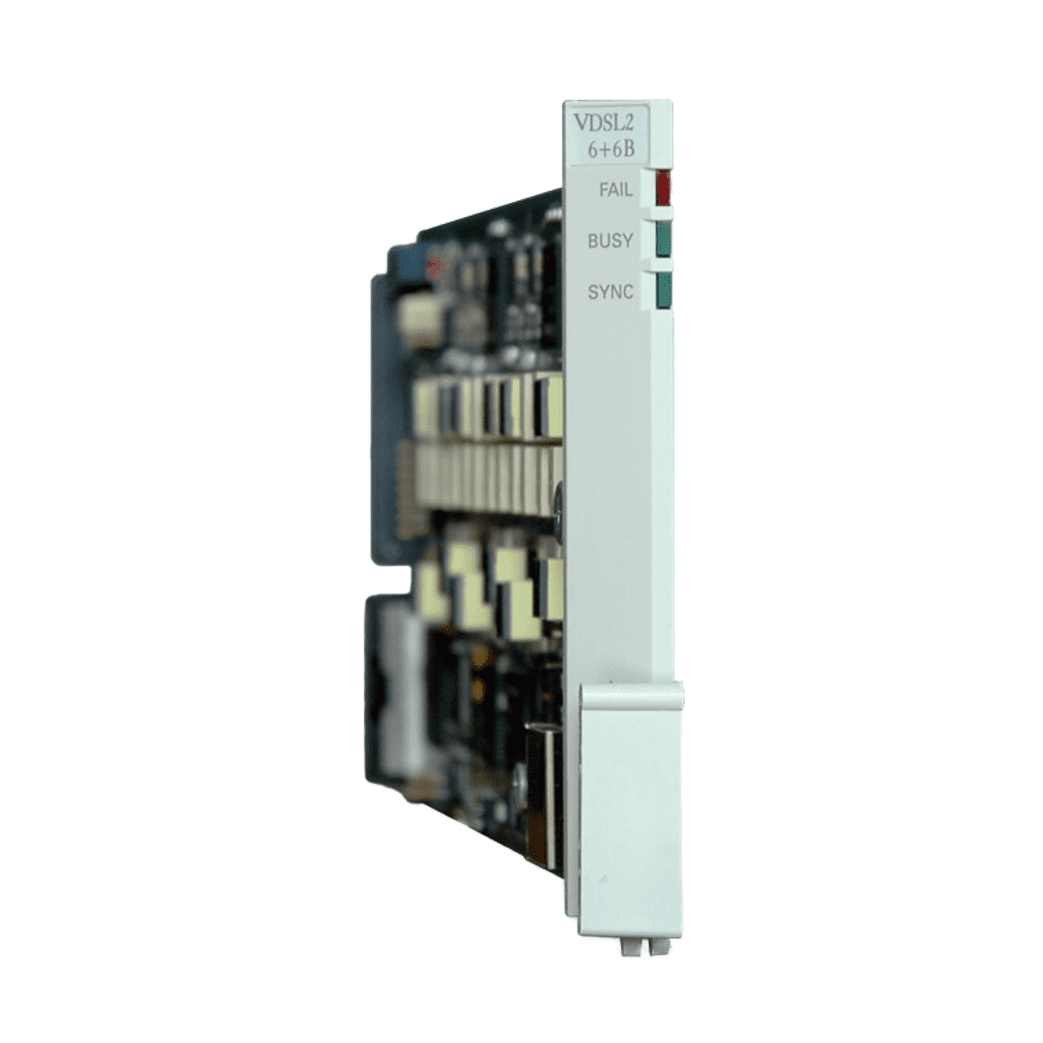

VDSL2 6+6B Plug-in Card
VDSL2 6+6B Plug-in Card
FlexSym Optical Line Terminal Mini (OLT-mini)
FlexSym Optical Line Terminal Mini (OLT-mini)
10 Gigabit Ethernet 226 (GbE226)
10 Gigabit Ethernet 226 (GbE226)

Strategies for Connecting the Underserved and the Unserved

Broadband connectivity is absolutely essential now more than ever to battle our nation’s digital divide problem. Some studies have calculated that 83 million people in the USA lack access to high-speed internet services – many of whom live in rural areas. Other statistics indicate that during the pandemic, 30 million underserved Americans were not able to access telehealth and online learning resources that were desperately needed.


Tellabs 1000 MSAP xDSL Choices

The Tellabs 1000 Multi-Service Access Platform (MSAP) embedded base can play a critical role in closing these gaps in metropolitan and rural areas. Tellabs broadband technologies already connect millions of homes and businesses across the USA. Consequently, Service Providers have the opportunity to upgrade and expand existing Tellabs broadband systems to deliver 100M/20M, 50M/5M and 25M/3M internet connectivity. The Tellabs 1000 MSAP is an ideal platform for large and small network operators participating in Connect America Fund (CAF), Rural Digital Opportunity Fund (RDOF), Infrastructure Investment and Jobs Act (IIJA) and Broadband Equity, Access and Deployment (BEAD) national broadband stimulus programs. It plays a vital role in network transformation projects for all telecommunication service providers.


Here are the 5-steps a Service Provider can take to help serve the underserved and unserved:

  1. Identify which Tellabs 1000 systems can reach the underserved and unserved customers. These system may have 22 card slot T1000 “DMAX” chassis or a smaller 10 card slot T1048 chassis.

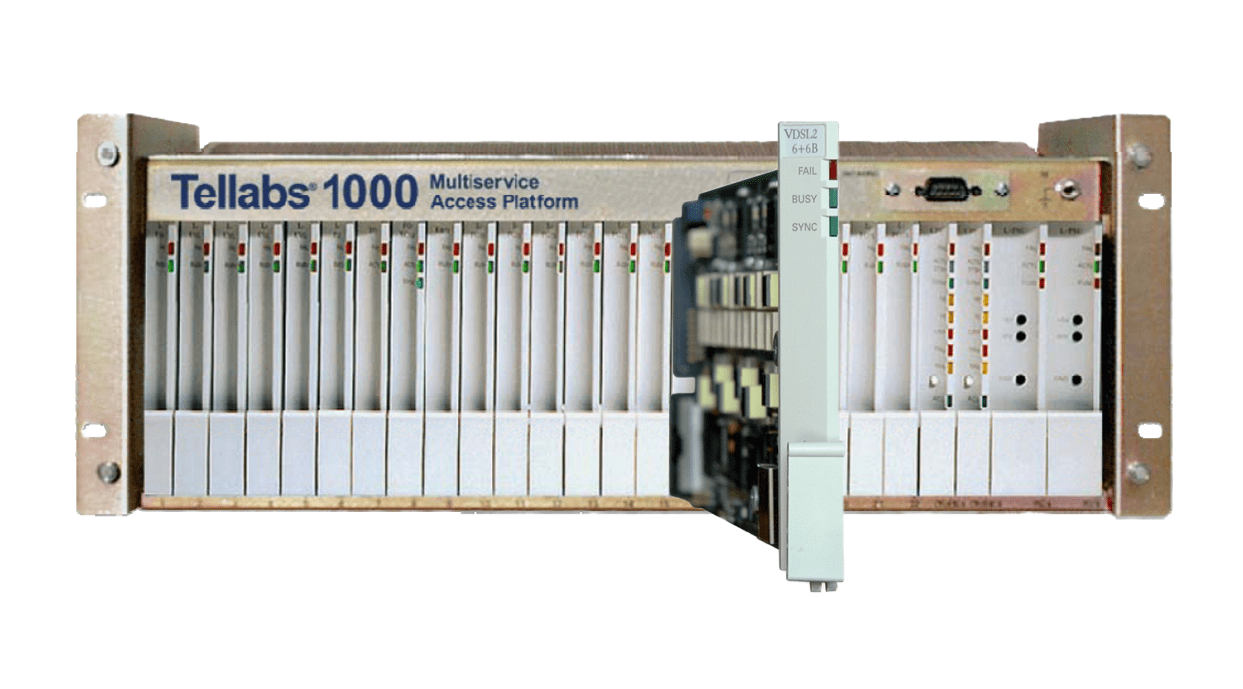

  2. Once located, you can easily upgrade and expand these existing, and already operationalized, Tellabs 1000 systems in the most economical means possible. Simply add VDSL2 6+6 plug-in cards to a broadband-ready chassis.

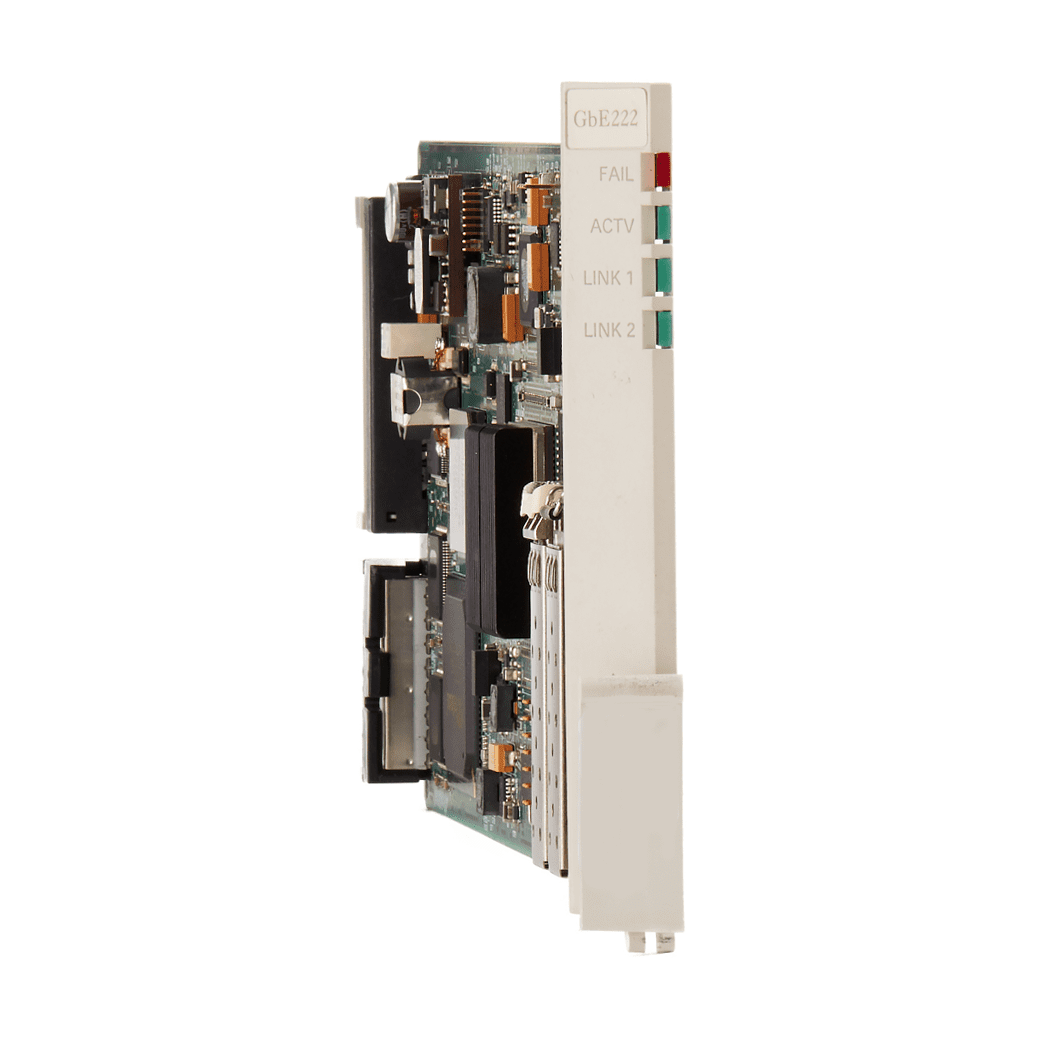

  3. Additionally, you can enhance the performance of those chassis, and maximize their transport capacity, by installing the Gigabit Ethernet (GbE222) plug-in card into the same shelf as the xDSL service cards.
  4. Where a service provider chooses to optimize the outside fiber plant or aggregate gigabit Ethernet ports, you can install the new 10 Gigabit Ethernet (GbE226) plug-in card to transport all the broadband traffic from multiple GbE222 cards, enabling the highest possible DSL speeds over the Tellabs 1000 platform.
  5. Best yet, Tellabs professional services can assist with your broadband upgrade projects to ensure success. Our professional services can supplement your internal resources to plan, build and operate these access networks.

Tellabs FlexSym OLT-mini PON Options

For broadband stimulus projects targeting 100M/20M and 1G/500M connectivity to residents, businesses and community anchors, a Passive Optical Networking (PON) design that uses the Tellabs FlexSym OLT-mini should be considered.

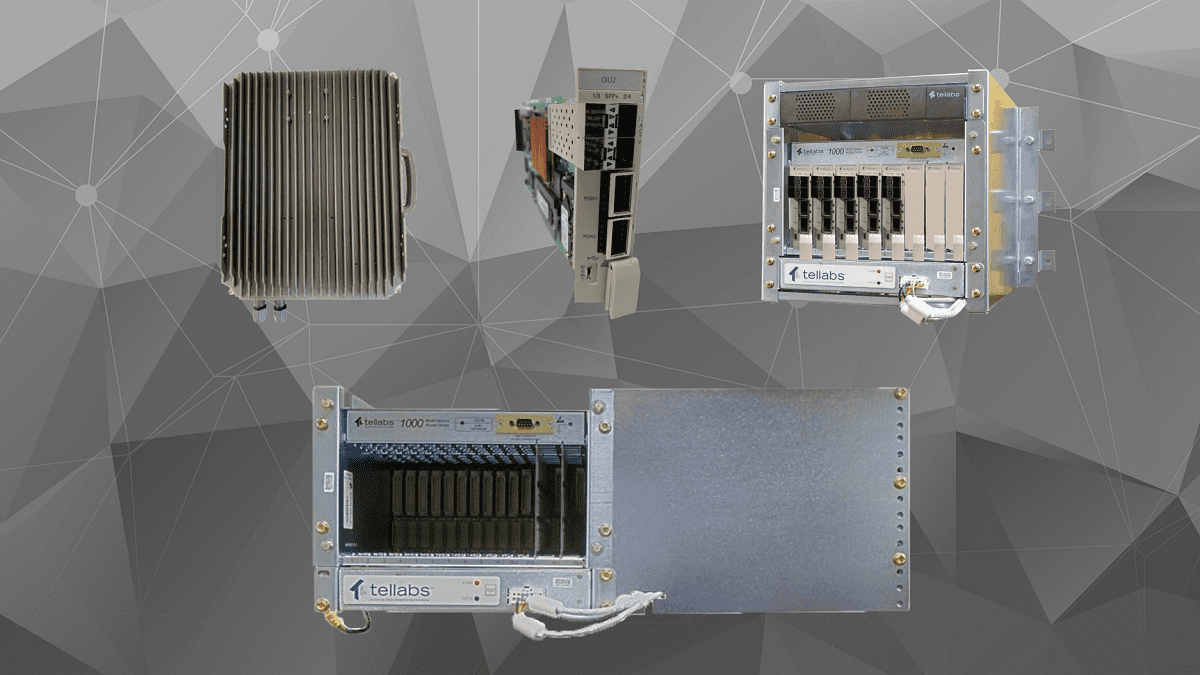

The Tellabs FlexSym OLT-mini provides a small form-factor OLT supporting either GPON or symmetrical 10 gigabit XGS-PON. There are four SFP+ 1G or 10G Ethernet interfaces for the network connectivity. The FlexSym OLT-mini has multiple mounting choices including weathertight enclosure, rack and wall mount options.

Tellabs FlexSym OIU2 – The FlexSym OIU2 is a 2-port PON service module that can be either G-PON or 10G XGS-PON. The OIU2 also provides four SFP+ 1G or 10G Ethernet interfaces.

Tellabs FlexSym OLT-mini – This is an outdoor, hardened and self-contained OLT. The FlexSym OLT-mini is equipped with two PON ports and four Ethernet ports that are sealed in a NEMA enclosure.

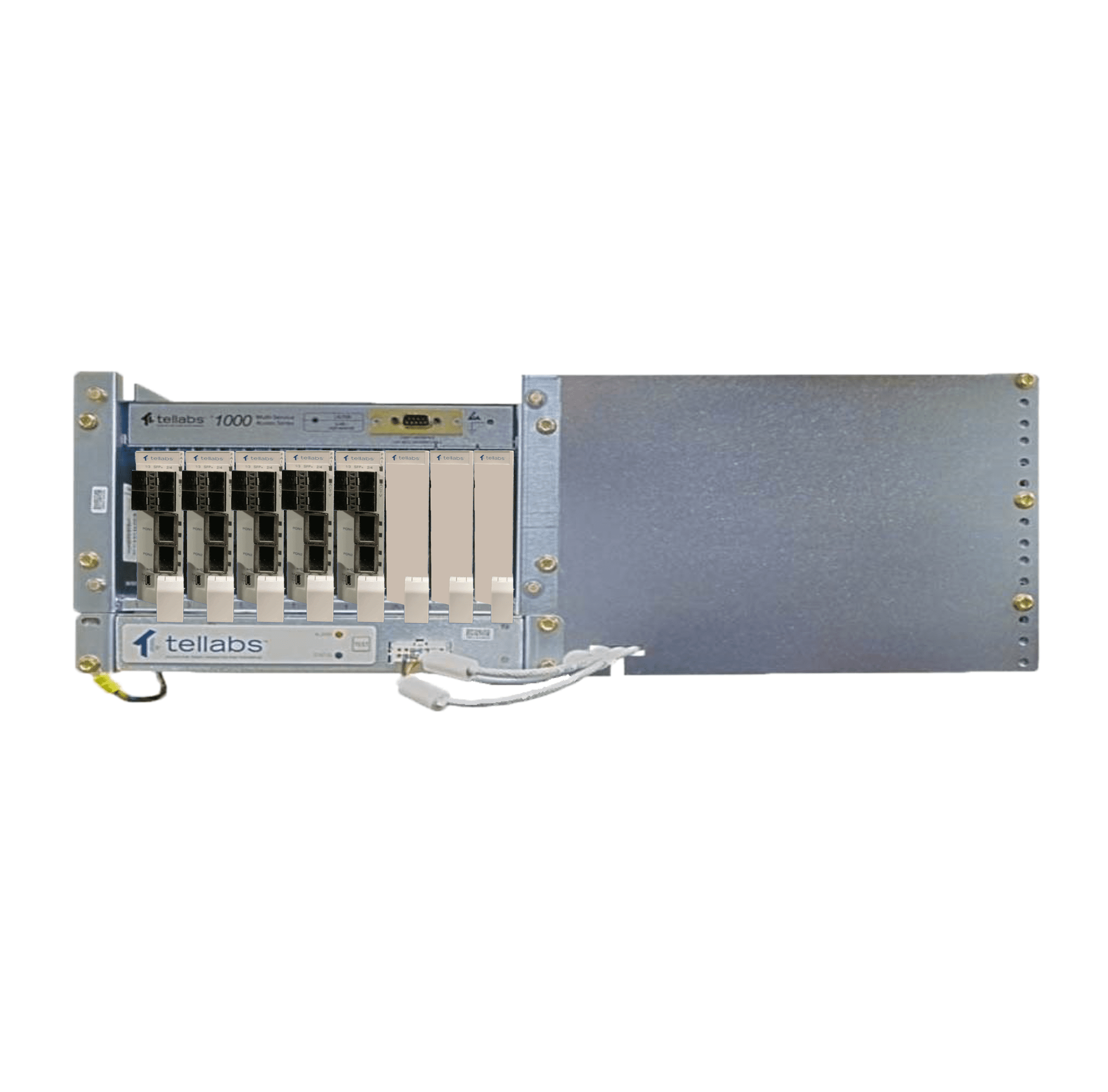

Tellabs FlexSym OLT-mini PLUS Rack – This is a rack mount shelf allowing modular addition of PON ports. Up to five FlexSym OIU2 cards (2-ports PON, 4-ports Ethernet) can be slotted into this shelf.

Tellabs FlexSym OLT-mini PLUS Wall – This is a wall mount shelf that offers modular addition of PON ports too. Again, multiple FlexSym OIU2 cards can be equipped into this chassis.

All of these features optimize the OLT-mini for difficult connectivity challenges of sprawling distances, harsh environments and extended temperature ranges.
